| Filter Media |
Ultra-fine glass fiber |
| Separator |
Hot-melt adhesive |
| Frame Material Options |
Aluminum / Galvanized Steel / Plastic |
| Filter Type |
Pleated HEPA |
| Advantages |
Smaller, lighter, aesthetically appealing; ideal for airflow-restricted applications |

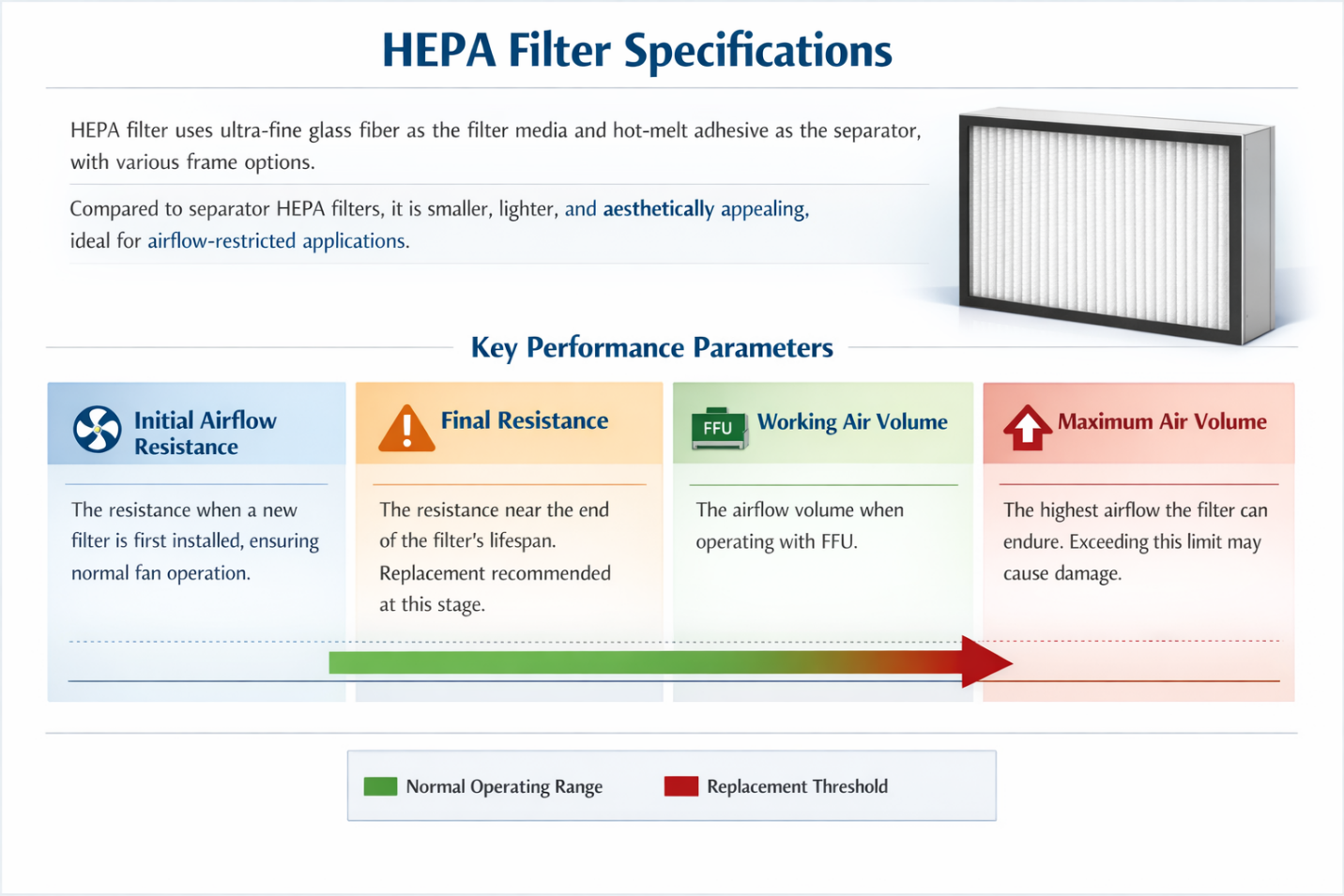

| Initial Airflow Resistance |
Pressure drops when new; ensures normal fan operation |
| Final Airflow Resistance |
Pressure drops near end-of-life; filter replacement recommended |
| Working Air Volume |
Airflow when installed with Fan Filter Unit (FFU) |
| Maximum Air Volume |
Maximum allowable airflow; exceeding may cause damage or leakage |
| Efficiency Rating |
H13 / H14 (99.95% – 99.995% at 0.3 µm particles) |
| Temperature Range |
Up to 80 – 130°C (continuous, depending on media) |
| Moisture Resistance |
Up to 100% relative humidity |
| Standard Compliance |
EN 1822 / IEST-RP-CC001 / ASHRAE 52.2 |
| Dimensions |
305 × 305 × 292 mm, 610 × 610 × 292 mm or Custom Sizes |
| Optional Features |
Support Grid, Gasket Sealing, Leak Tested (DOP / PAO) |
